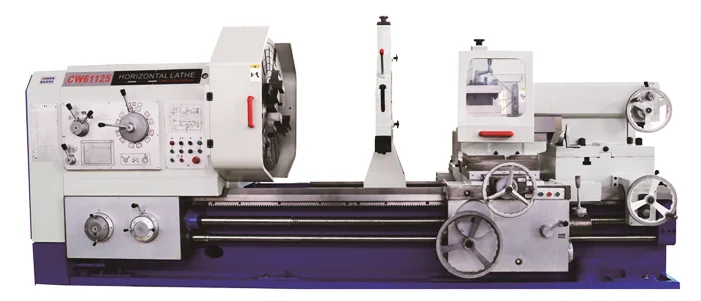

Photos of Mahine

Heavy duty large Horizontal Lathe hobby metal Lathe Machine

CW6163B, CW6100B series of horizontal lathes are suitable for machining large and medium-sized parts of castings, steel and non-ferrous metals, and can turn outer circles, inner holes, end faces, grooving, drilling, boring and nesting, and can turn Various internal and external threads, such as metric system, inch system, modulus and diameter, can be turned on the short cone surface by the upper tool stand alone. The machine has high power, high rigidity, wide speed range, and can perform high-speed and powerful cutting.
The Horizontal Lathes Structural features:
1. Highly rigid overall bed:
The bed adopts an integral cast structural bed, the internal ribs are arranged reasonably, and the rigidity is high. The guide rail adopts an intermediate frequency quenching grinding process. Adopting anti-creeping guide rails and other technical measures at the sliding guide surface, dynamic characteristics such as friction damping coefficient are in the best state, avoiding the occurrence of low-speed crawling.
2.High rigidity and high precision spindle:
The main shaft bearings of the machine tools are selected from domestic famous enterprises. The headstock adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the main shaft. In order to reduce thermal deformation, the bedside box is lubricated by oil bath circulation. The front end of the main shaft adopts a three-support structure of a bidirectional angular contact ball bearing, which improves accuracy and rigidity. The gears in the main shaft box are quenched and ground to ensure accurate transmission and low noise. The carefully assembled spindle has the characteristics of low temperature rise, small thermal deformation, and high precision, so that the accuracy of the spindle can be kept relatively stable during long-term work.
